Old Mortise Style Door Striker Spacers

Old Mortise Style Door Striker Spacers

Regular price $11.99 USD
Regular price Sale price $11.99 USD
Sale Sold out
Shipping calculated at checkout.
Height
Spacing
Quantity
Have a door that won't stay closed or even close at all? Don't want to go through the trouble of repairing the door by re hanging the frame / replacing the door? I have designed this door striker spacer to replace the existing striker or to be used with the existing striker.

This listing is for an older mortise style door striker. If you are looking for our standard 2 1/4" door striker check out our other listing.
If you are looking for our commercial 2 3/4" door striker check out our other listing.

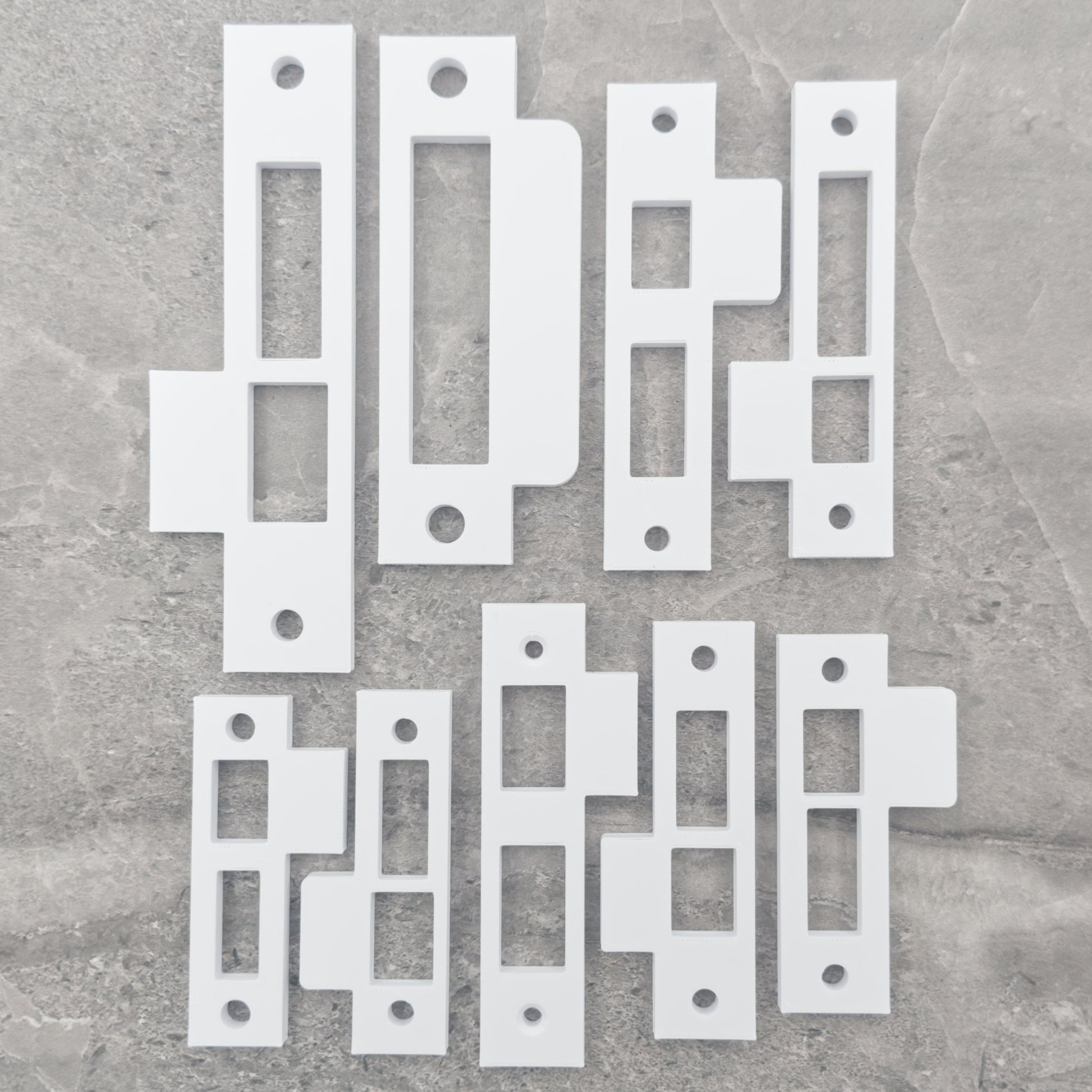

Pick your size and spacing (Guide on how to choose your spacing below) and if you need multiple spacers, take advantage of our bulk pack deal and same some $! We have 9 different types / sizes available, make sure to measure the height of your striker plate and ensure that the picture matches your particular striker. Also these spacers come in white, but if you specify which color you want, I can print it in any of these colors: Black, Blue, Red, Green, Purple, Orange, Yellow, Pink and of course White.

Having trouble finding out what size you need? We now offer a discount when you chose "All 3 Sizes".

Instructions / Tips:
Check out our new YouTube Video on how to measure for and install our door striker spacer: https://youtu.be/5VrH2hvsnsE

How to determine which spacing you need:
Measure the gap between the door and the frame. Subtract 1/8" from that measurement. Pick the closest match, making sure to round down in measurement, not up. If you pick too small of a spacer you can put the existing striker plate on top of the spacer. If the spacer is too large, you will need to sand it down with some sand paper.

Screws no longer fit or are loose: You will need to pick up a new set of drywall / wood screws. I recommend using screws that are at least 1" in size on interior doors and 3" in size on exterior doors. Make sure the head of the screws are countersunk in order to sit flush in the spacer.

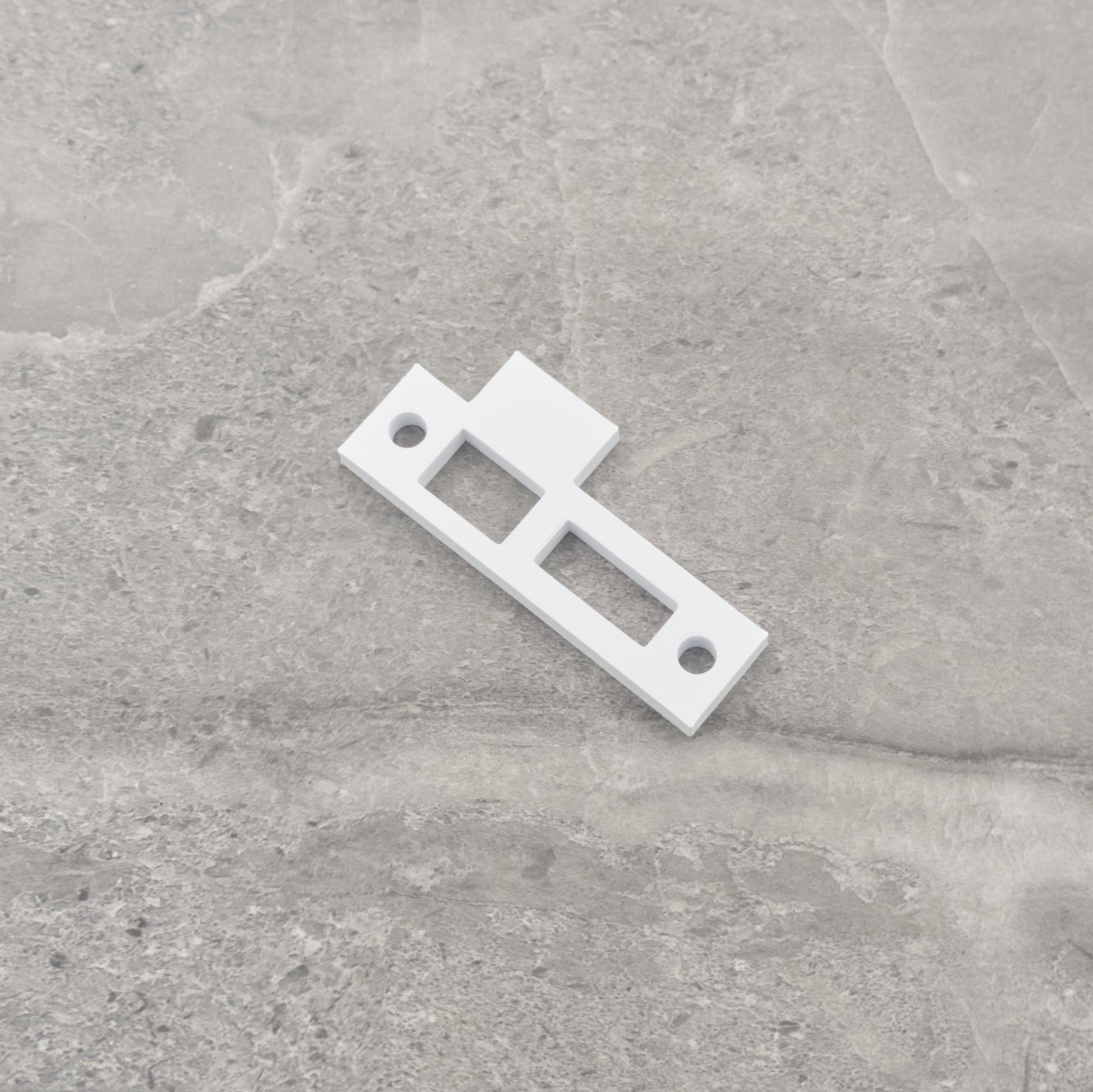

3-1/4" Striker Spacer Details:
Dimensions: 3 1/4" H x 7/8" W
Tongue projection: 1/2"
Top Cutout: 13/16" x 9/16"
Cutout Spacing: 1/4"
Bottom Cutout: 1" x 7/16"

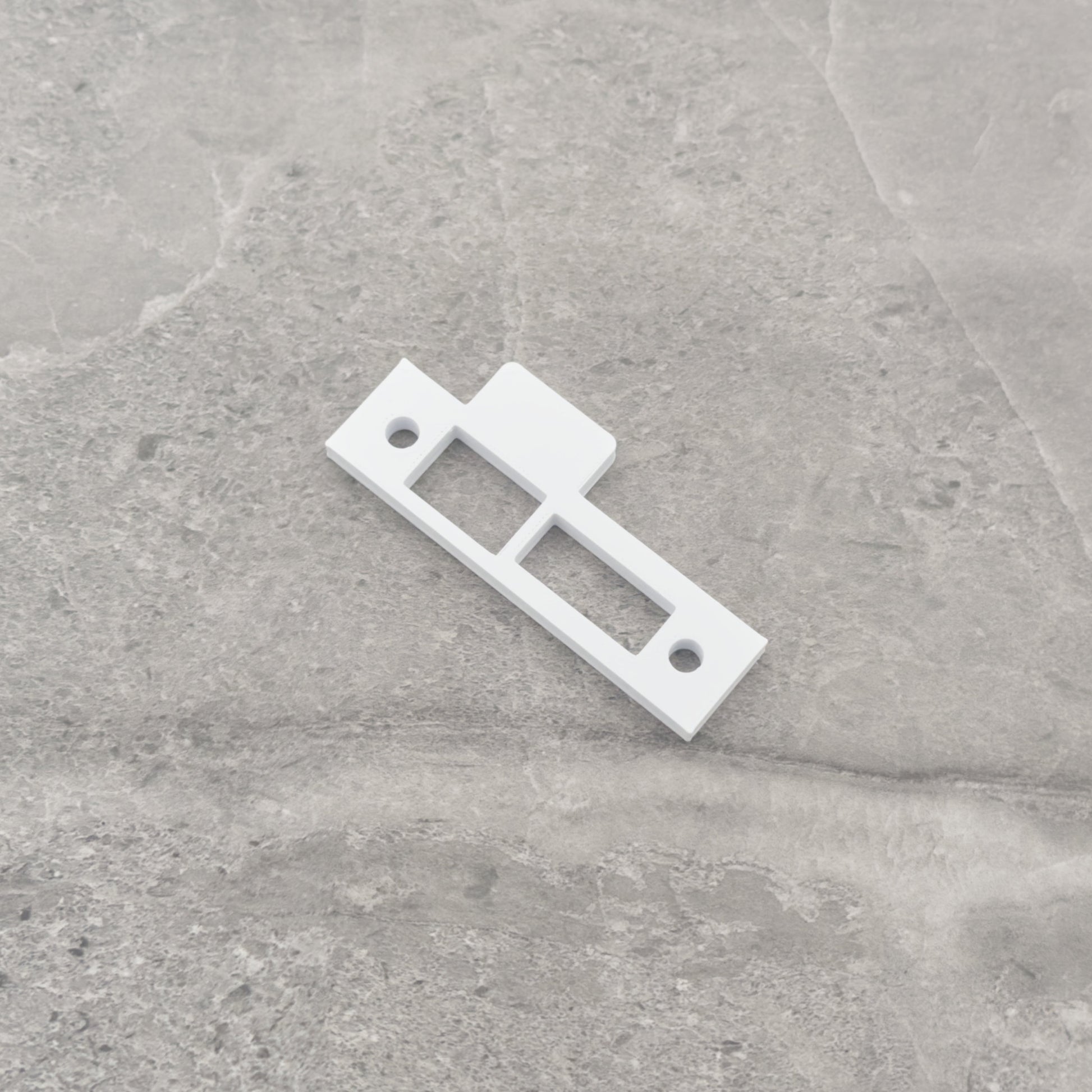

3-3/8" Striker Spacer Details:
Dimensions: 3 3/8" H x 7/8" W
Tongue projection: 1/2"
Top Cutout: 13/16" x 9/16"
Cutout Spacing: 1/8"
Bottom Cutout: 1 1/16" x 7/16"

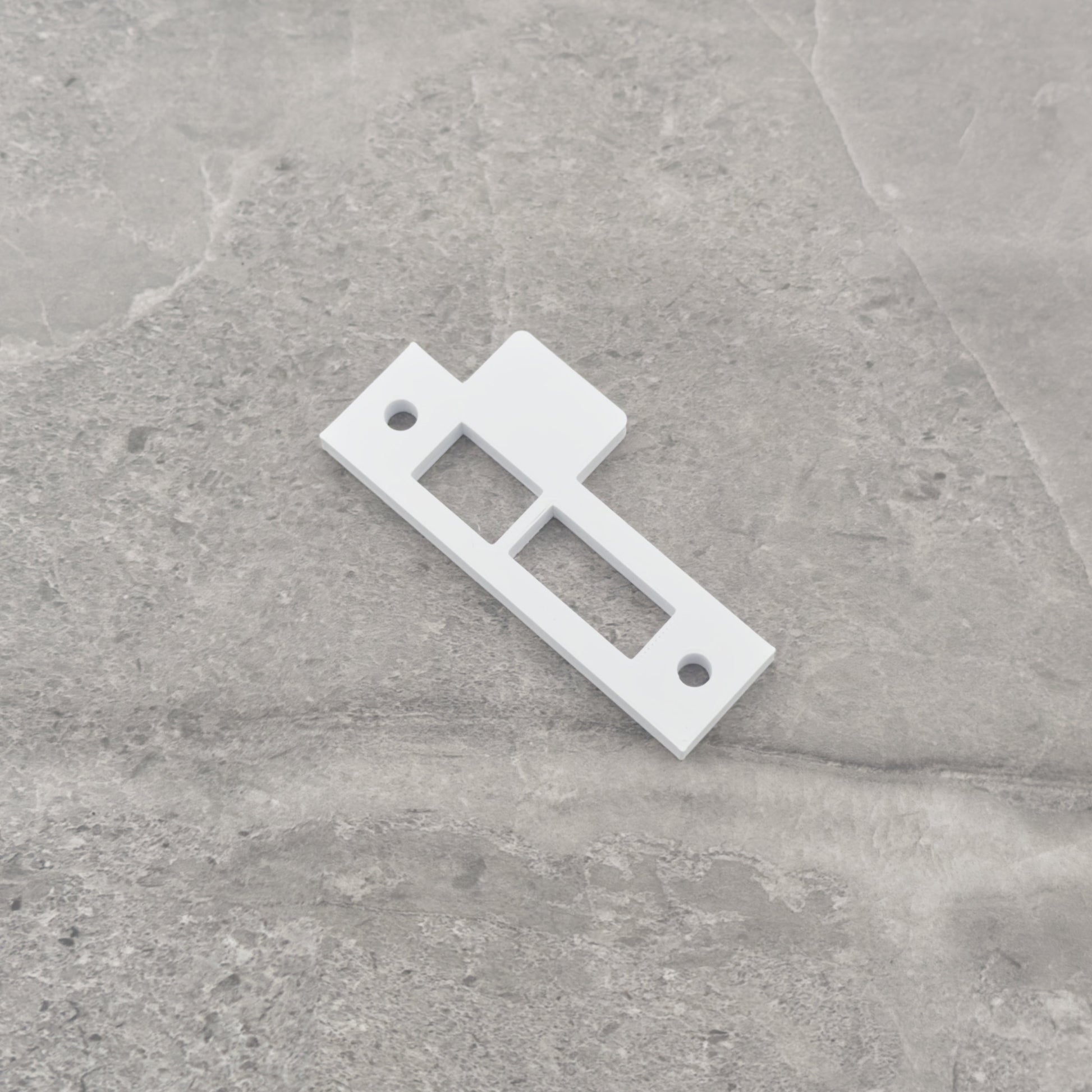

3-1/2" Striker Spacer Details:
Dimensions: 3 1/2" H x 1" W
Tongue projection: 5/8"
Top Cutout: 13/16" x 9/16"
Cutout Spacing: 1/8"
Bottom Cutout: 1 3/16" x 1/2"

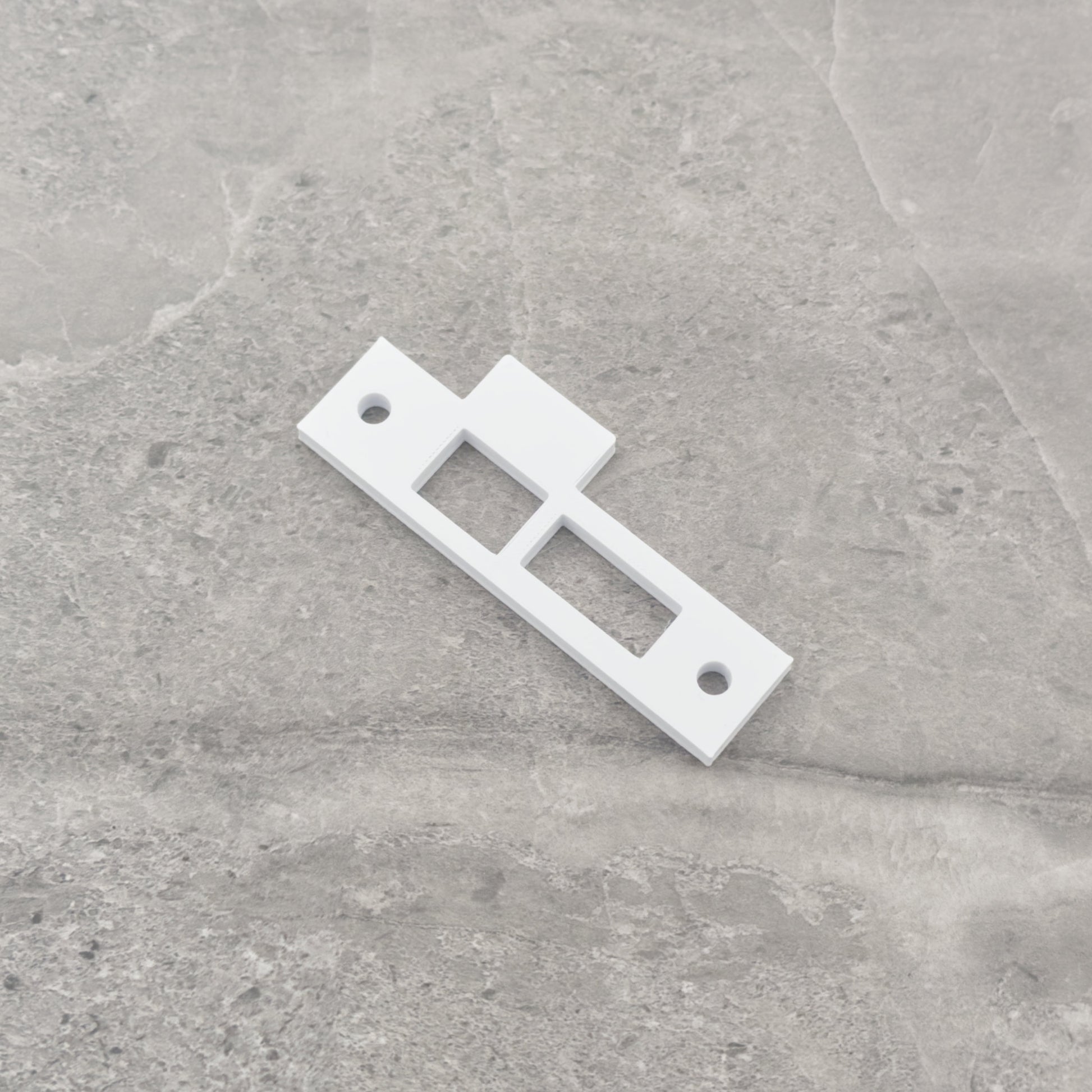

3-7/8" Striker Spacer Details:
Dimensions: 3 13/16" H x 15/16" W
Tongue projection: 1 1/2"
Top Cutout: 13/16" x 9/16"
Cutout Spacing: 3/16"
Bottom Cutout: 1 1/16" x 7/16

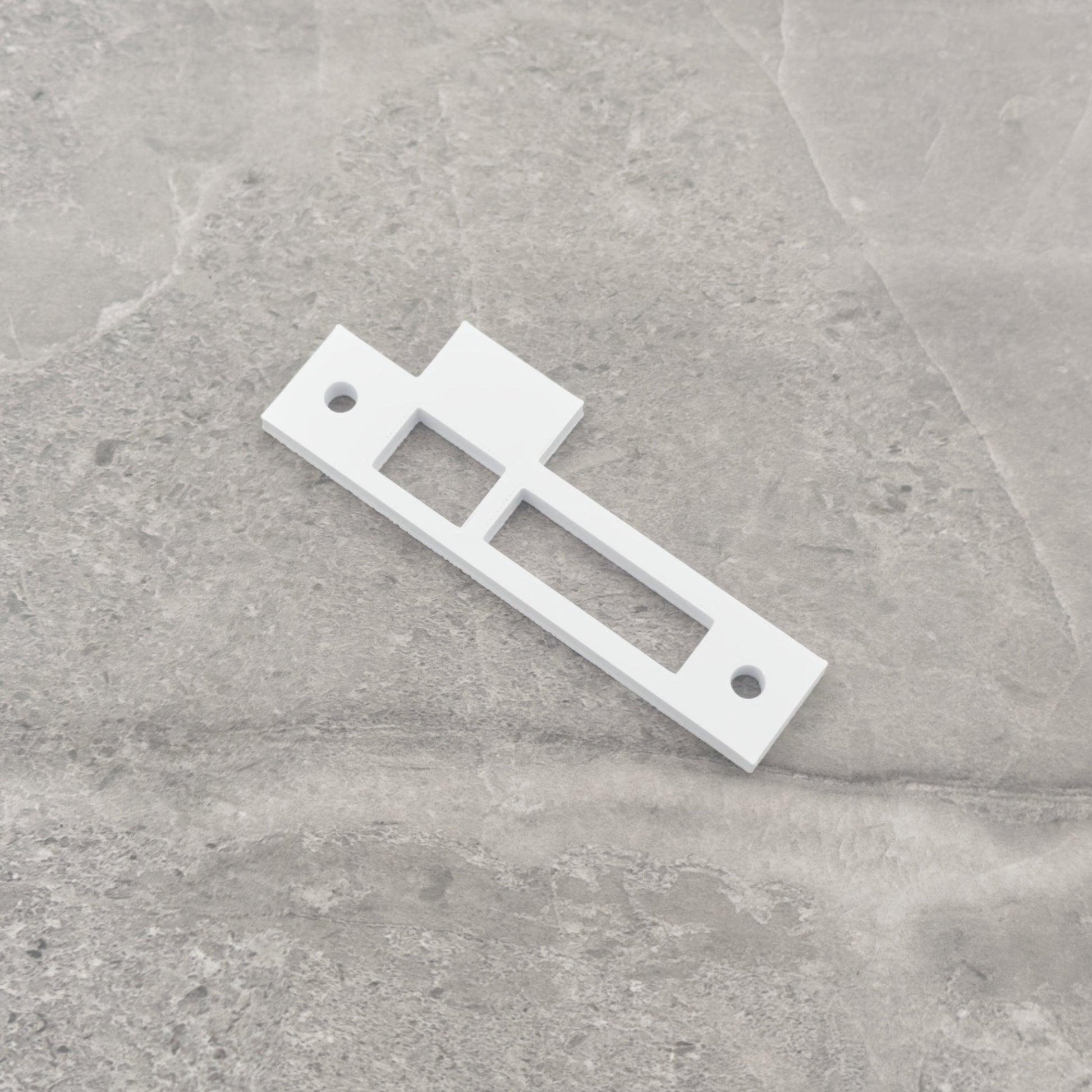

4-3/8" Striker Spacer Details:
Dimensions: 4 3/8" H x 15/16" W
Tongue projection: 1 1/2"
Top Cutout: 13/16" H x 9/16" W
Cutout Spacing: 3/16" W
Bottom Cutout: 1-11/16" H x 1/2" W

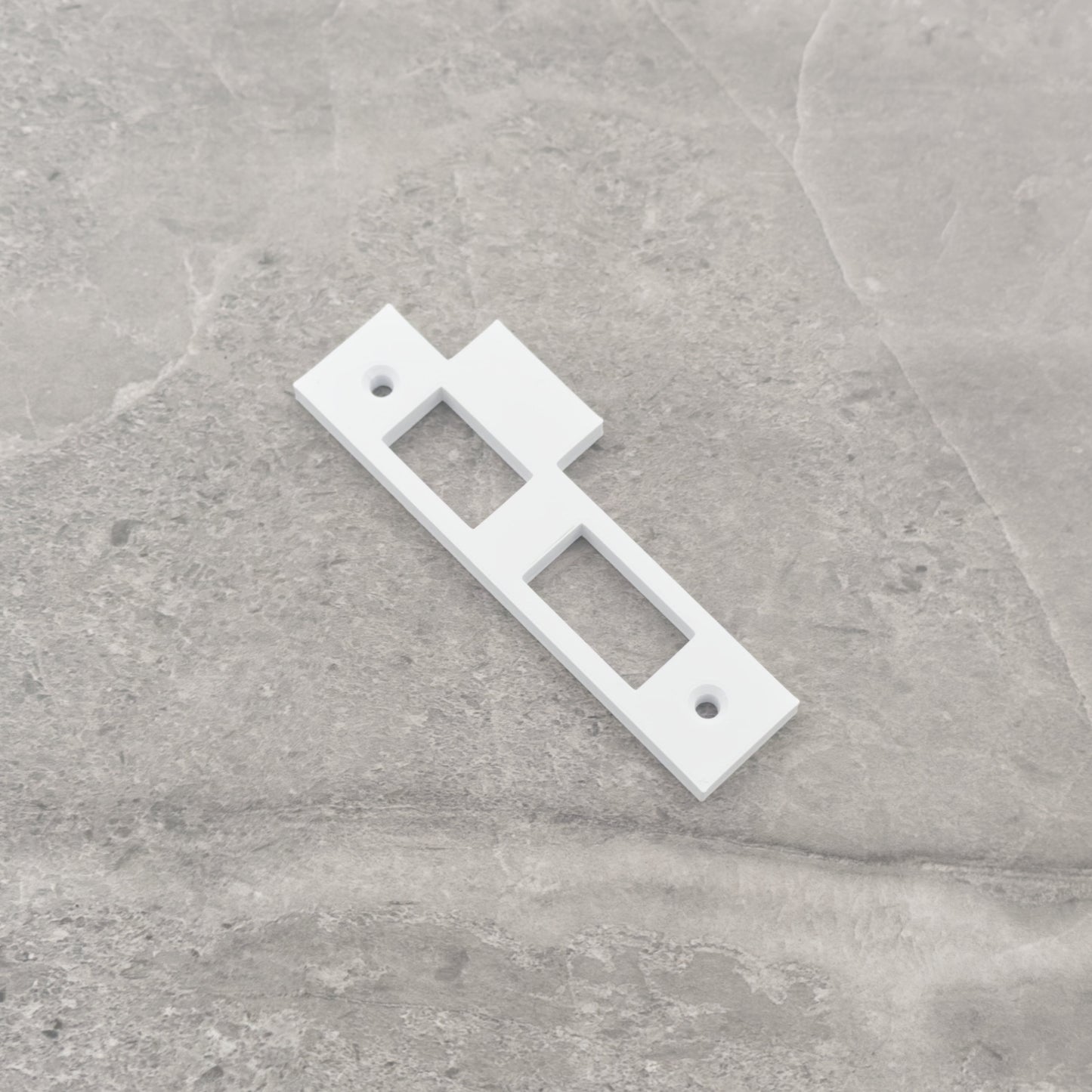

4-5/16" Striker Spacer Details:
Dimensions: 1" W x 4 5/16" H
Tongue projection: 1/2"
Top Cutout: 1" x 5/8"
Cutout Spacing: 1/2"
Bottom Cutout: 1 3/16" x 5/8"

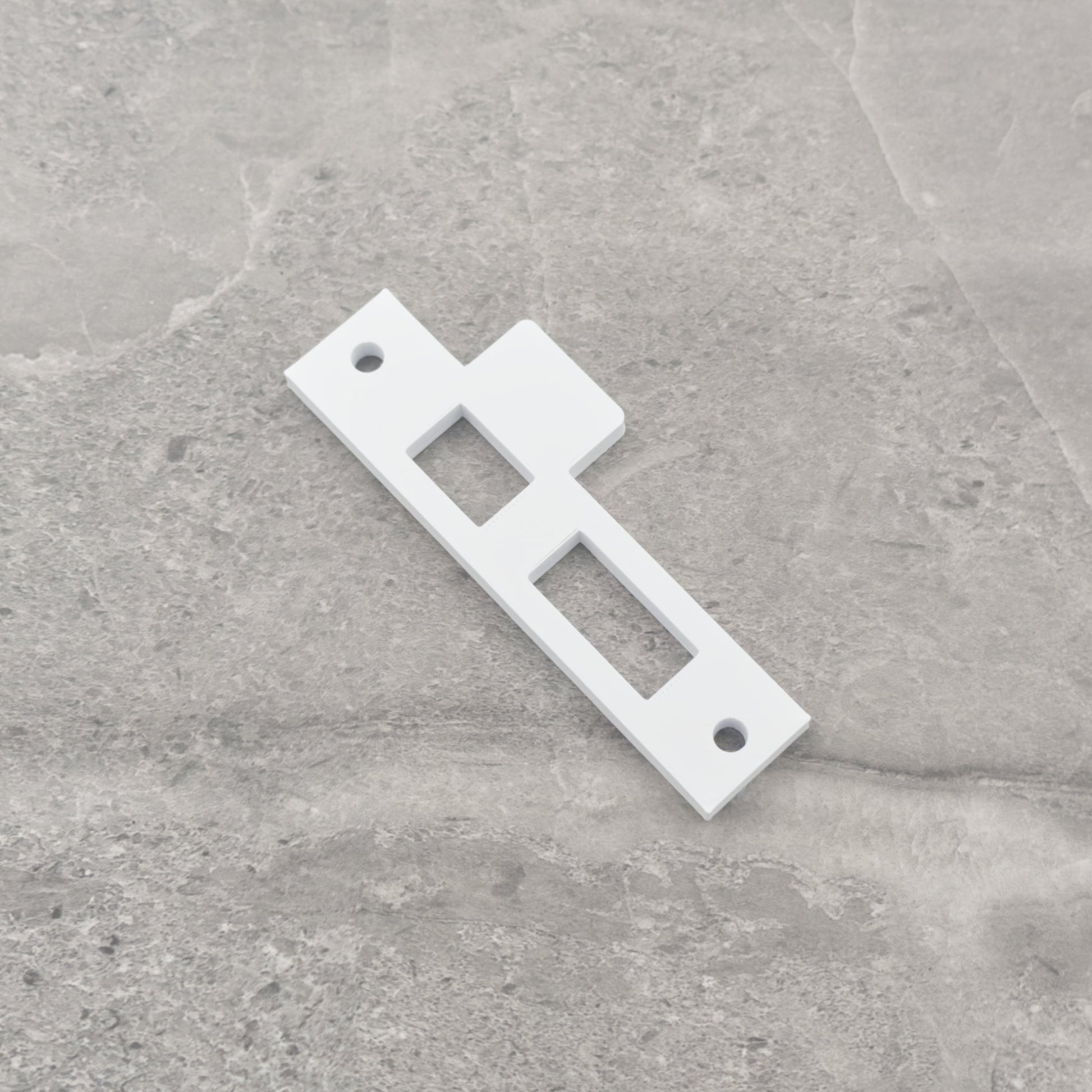

4-1/2" Striker Spacer Details:
Dimensions: 4 1/2" H x 1" W
Tongue projection: 5/8"
Top Cutout: 13/16" x 9/16"
Cutout Spacing: 1/2"
Bottom Cutout: 1 1/4" x 1/2"

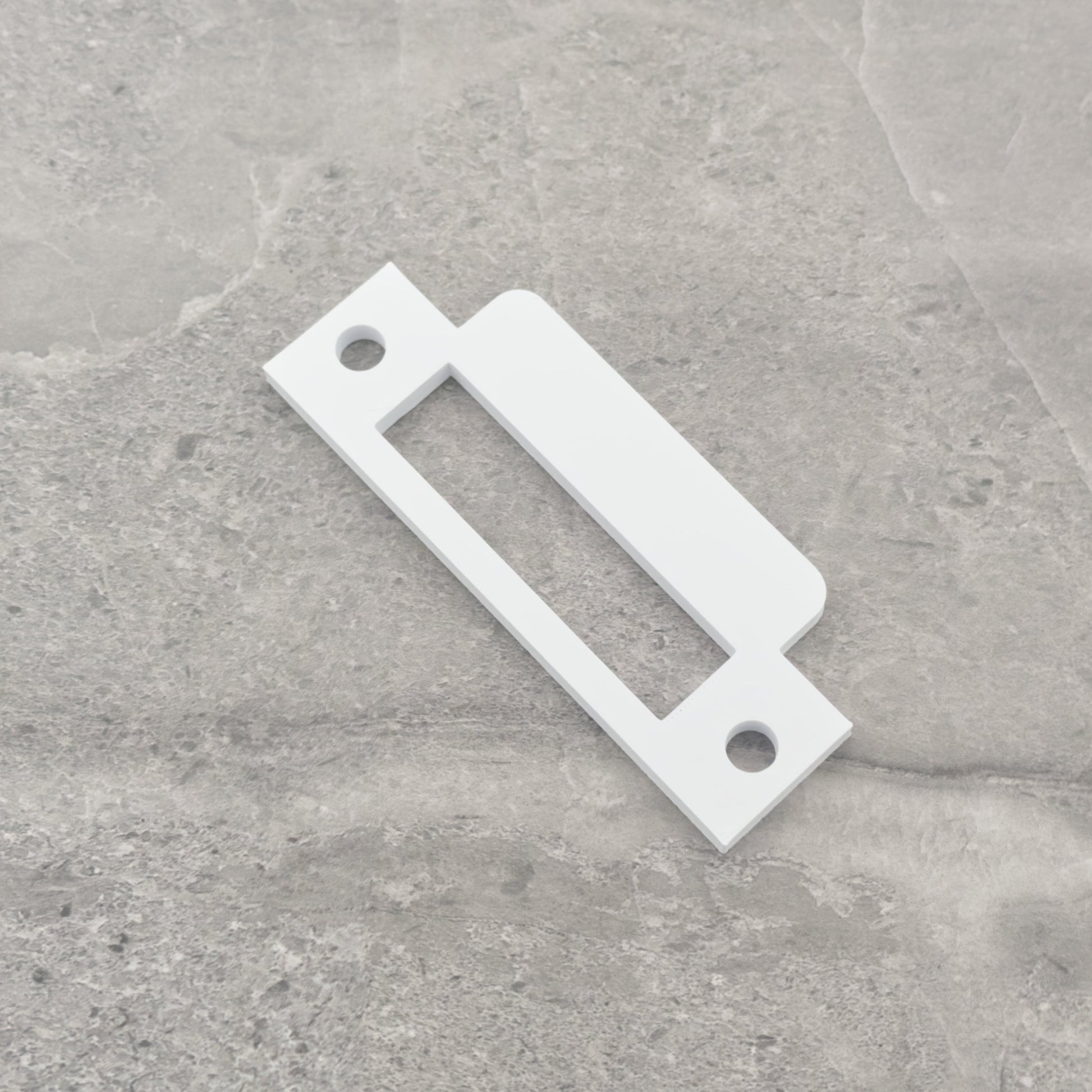

4-7/8" Striker Spacer Details:
Dimensions. 4 7/8" H x 1 1/4" W
Tongue projection: 5/8"
Cutout: 3 1/16" x 11/16"

This product is 3D Printed and made to order. Please allow 1-3 days before shipping so these can be printed.
